India’s Invisible Water Wizards



SRD WATER TCHNIQUE-2

India has long undervalued one of its most precious resources—water—and today the country’s chronic mismanagement of water has led to drought in nearly 2,00,000 villages. According to the World Bank data, Indian farmers use almost 70% of the total groundwater that is drawn in the country each year. Shockingly, India uses more groundwater annually than China and the United States combined. Due to this massive overuse, groundwater levels are being depleted all over the country by an average of 0.3 metres per year.

Traditional water harvesting techniques, such as the jhalara, bawari, nadi, khadin, and tanka, have been employed for nearly 1,500 years to conserve water for cultivation. These systems continue to remain viable and cost-effective alternatives for replenishing depleted groundwater aquifers. However, this traditional knowledge and wisdom have been abandoned in the race to embrace new technologies which have upset the ecological system.

With government support, these systems could be revived, upgraded and productively combined with modern techniques. Sikandar Meeranayak, the founder of a nonprofit called Sankalpa Rural Development Society (SRDS) based in Hubli, Karnataka, is one of those working hard to assist farmers to understand the importance of sustainable water management. He has implemented over 1,130 rainwater harvesting structures for farmers as well as industrial sites, schools, and urban housing complexes. Meeranayak’s method is to channel the monsoon rains back through borewells into the underground aquifers where it can be conserved for future use. Even borewells that had dried up are being replenished through the method after only one decent rainfall. “I have always been passionate about solving water troubles”, says Meeranayak, who grew up in a drought-prone region.

The aim of SRDS is to lower the cost of existing irrigation technology using innovations tailored to the needs and conditions of local farmers. The SRDS method of borewell recharge uses a catchment pond that can collect and store up to 3 lakh litres of rainwater, The catchment pond is a 10x10x10 foot pit that acts as a primary filter around the borewell and has a casing pipe with tiny holes to allow water to percolate in and out without any loss to the borewell. “When we began operations”, says Meeranayak“nearly 70 percent of Hubli’s borewells had run dry and many farmers were selling their lands to pay off debts.” Today, SRDS has recharged hundreds of borewells across Andhra Pradesh, Karnataka, Maharashtra, Punjab, and Uttar Pradesh. Besides implementing their water replenishment systems the SRDS team also educates farmers on post-recharge maintenance and care.

Shashank is a farmer in the Sira District of Karnataka whose life has been transformed through Sikandar’s efforts. Ten years ago he dug a borewell, for three years it provided water but with depleting vigour each year. When Shashank’s borewell finally dried up, he was forced to reduce his cultivation to one crop per year. He became totally dependent on rainfall, his income fell, and he decided to abandon his land to search for work elsewhere.

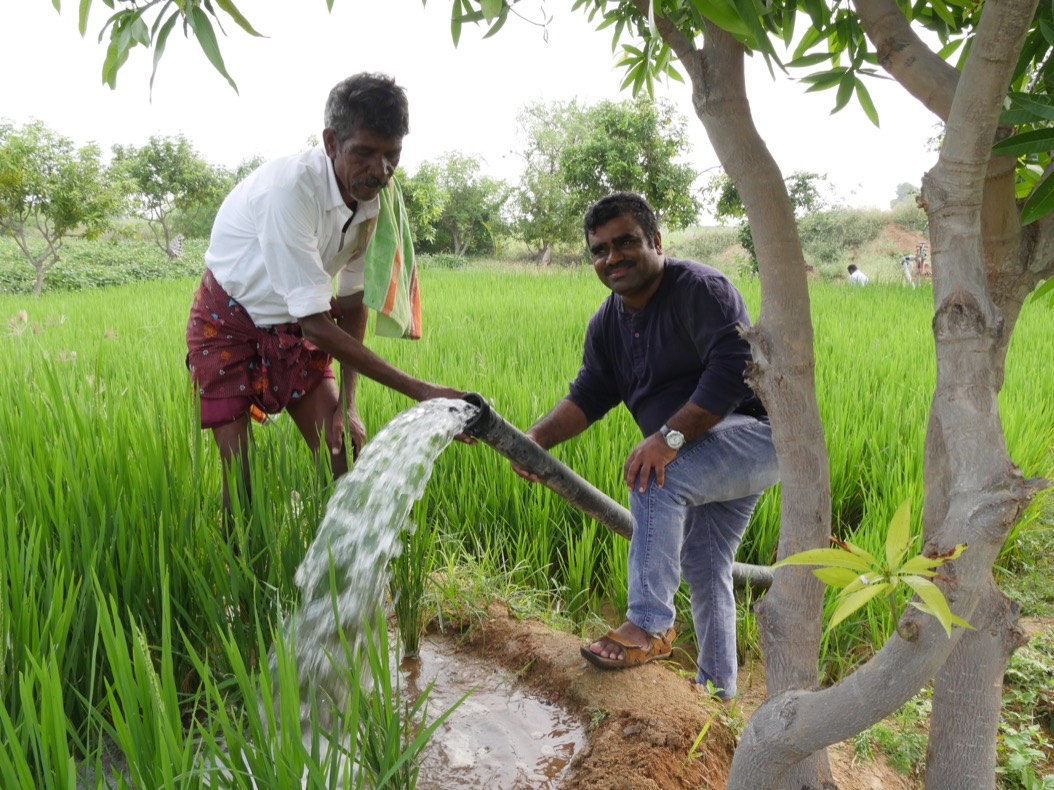

It was then that he heard about the SRDS recharge method. At a cost of approximately Rs 15,000—his share of the total Rs 30,000—a feeder pond was built and the rainwater harvesting system was installed in Shashank’s dry borewell. When the rains came, the pond filled with water. Soon afterwards, he refitted the pump to his bore well—and was overjoyed to find water gush out. This year he will be able to grow two crops again and fully irrigate his land.

This story is not unusual, it has been repeated many times over in more than 90% of the implemented borewell recharge projects. The direct borewell recharge technique has seen a profound increase in ground-water levels and yielded many other benefits. With the confluence of pure rainwater, the quality of the existing groundwater improves, marked by a decrease in solids and toxins, and the hard water is made usable. Erosion of precious topsoil is also arrested as the runoff water from the farms and open fields are channelled to the recharge pits.

The increased availability of water enables farmers to gain multiple crop cycles and diversify the crops grown leading to increased harvests. The growth of crop yields and the resultant growth in rural prosperity also adds to the employment possibilities for the landless and underprivileged. There is also good news for the environment. In regions where multiple recharge projects have been set up, there had already been a marked reduction in the demand for new borewells.

After Meeranayak’s first success, the idea spread like wildfire in the nearby water-starved villages. The amount of land under cultivation has grown manifold and farm incomes are rising. For work, men no longer need to leave home, and women need walk no farther than their village for water.

The method is simple, works well and is cost-effective. In brief, the process is as follows:

  1. A pond which is approximately 8 ft deep is constructed near the site of the borewell so that it is in a position to gather the runoff water from the monsoon rains.
  2. A pit is dug around the borewell casing.
  3. The bottom of the pit is lined with filtration material to a depth of 2 ft
  4. Then, slits are cut into the borewell casing using a cutting machine and the casing is wrapped with nylon mesh so that solids cannot enter.
  5. At this stage, cement rings are placed around the borewell casing and the spaces between are filled with cement to seal them. This ‘false well’ is then filled with stones.
  6. A second ‘false well’ is made of cement rings which are placed next to the first and the gaps between are filled with cement. A cover is placed on it to stop rubbish falling in.
  7. A 3-inch feeder pipe is fitted, coming from the pond to a hole in the first cement ring of the empty well. This brings in the water from the pond.
  8. During the rainy season, the water flows from the pond into the first empty well where it percolates down through the filtration material and subsequently up into the second well around the borewell casing. It then enters through the slits and filters down into the underlying aquifer where it is stored for the following dry season.

This borewell recharge technique can be easily replicated and implemented anywhere in rural or urban areas at an affordable rate. Moreover, it can be customised according to local needs and geographic conditions. The work is done on a shared cost basis with the farmers—they chip in with materials and labour to contain the cost—and the final cost is only a fraction of what is required for a new borewell. The system fails only if the monsoon rains fail. Even if the feeder pond fills three times during the rainy season, the aquifer will be recharged.

Borewell recharge is a permanent solution that allows farmers to irrigate between 6 and 9 acres of land and grow 3 or 4 different crops per year. There are also supplementary benefits. When a borewell is recharged, the moisture in the surrounding land becomes denser, allowing farmers to grow additional vegetables and fodder so that the nutritional needs of the family and livestock can be provided for apart from the main crop.

A lot of good ideas got their start when one individual looked at a familiar landscape with fresh eyes. People like Meeranayak have shown there are easy, sustainable methods for mitigating India’s water scarcity crisis. There are undoubtedly many viable solutions to be found if we are willing to think out of the box.

(Find out more at https://srdsindia.org)

Moin Qazi is the author of the bestselling book, Village Diary of a Heretic Banker .He has worked in the development finance sector for almost four decades .He can be reached at [email protected]
